Overview
The OM System OM-5 Mirrorless Camera Body (Black) with M.Zuiko ED 60 f2.8 Macro Lens is a professional-grade camera that combines advanced technology, compact design, and exceptional image quality to elevate your photography to the next level.
High Performance
The OM-5 Mirrorless Camera Body features a 20.4-megapixel Live MOS sensor and TruePic VIII image processor, delivering stunningly sharp and detailed photos with rich colors and excellent low-light performance.
Versatility
The included M.Zuiko ED 60 f2.8 Macro Camera Lens provides exceptional close-up capabilities, allowing you to capture intricate details and subjects with stunning clarity. With a focal length equivalent of 120mm in 35mm format, it is perfect for macro photography, wildlife shots, and portrait work.
Olympus M.Zuiko ED 60mm f/2.8 Macro Lens
High-Quality Optics
This lens delivers stunning image quality with excellent sharpness and minimal distortion.
1:1 Magnification
Perfect for macro photography, offering life-size reproduction of subjects.
Fast f/2.8 Aperture
Allows for beautiful background blur and excellent low-light performance.
Weather-Sealed Design
Built to withstand dust and moisture, ideal for outdoor shooting.
Lightweight & Compact
Portable and easy to handle, making it great for travel and fieldwork.
User-Friendly Interface

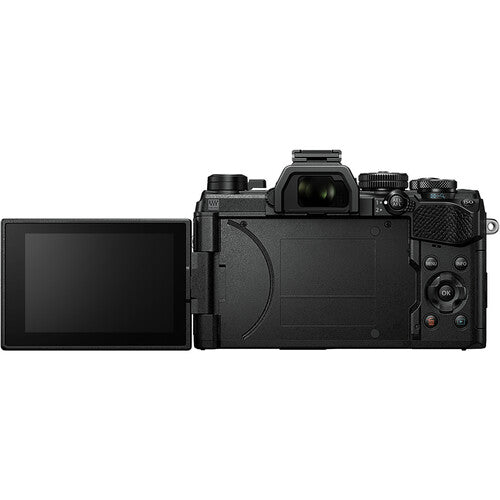

The OM System camera body boasts an intuitive control layout with customizable dials, making it easy for both beginners and experienced photographers to operate. The tilting LCD touchscreen allows for flexible composition, while the built-in electronic viewfinder offers convenient framing options.
Advanced Features
This OM System mirrorless camera supports high-speed continuous shooting at up to 10 frames per second, ensuring you never miss a moment. Dual Fast AF system provides quick and accurate autofocus performance, even in challenging lighting conditions.
Connectivity Options
OM-5 offers built-in Wi-Fi and Bluetooth connectivity for seamless sharing and remote control through your smartphone or tablet. It also has an HDMI output for easy playback on compatible devices.
Elevate your photography game with the OM System OM-5 Mirrorless Camera Body (Black) with M.Zuiko ED 60 f2.8 Marco Lens - it's the perfect combination of power, versatility, and convenience.

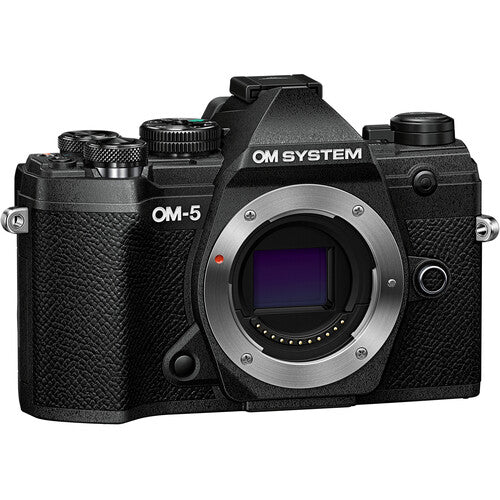

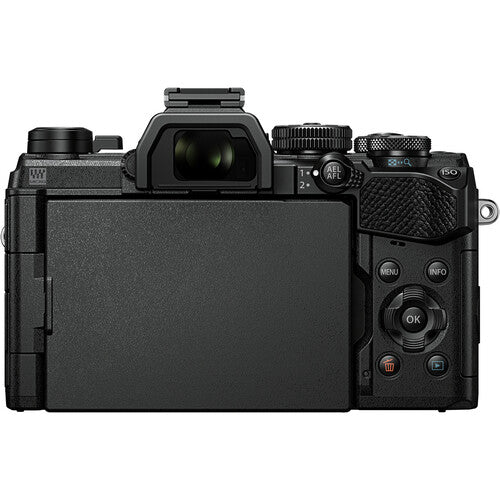

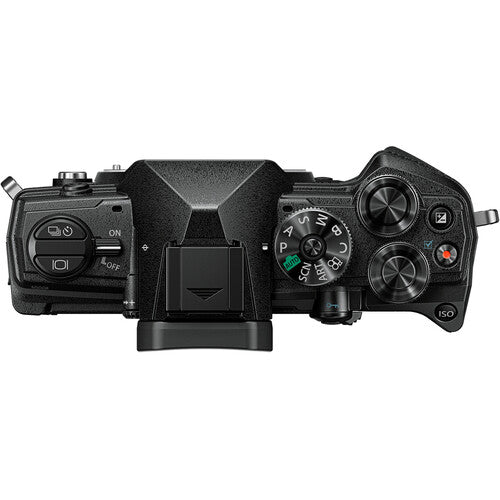

OM System OM-5 Mirrorless Camera Body Specs
| Lens Mount |
Micro Four Thirds
|
| Sensor Resolution |
Actual: 21.8 Megapixel
Effective: 20.4 Megapixel (5184 x 3888)
|
| Image Sensor |
17.4 x 13 mm (Four Thirds) MOS
|
| Image Stabilization |
Sensor-Shift, 5-Axis
|
Imaging
| Sensor Crop (35mm Equivalent) |
Crop Factor: 2x
|
| Built-In ND Filter |
No
|
| Capture Type |
Stills & Video
|
Exposure Control
| Shutter Type |
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
|
| Shutter Speed |
Mechanical Shutter
1/8000 to 60 Seconds
Electronic Shutter
1/32000 to 60 Seconds
Electronic Front Curtain Shutter
1/320 to 60 Seconds
|
| Bulb/Time Mode |
Bulb & Time Mode
|
| ISO Sensitivity Range |
200 to 25,600 (Extended: 64 to 25,600)
Video
200 to 6400
|
| Metering Method |
Center-Weighted Average, Highlight, Multi-Zone, Spot
|
| Exposure Modes |
Aperture Priority, Auto, Manual, Program, Shutter Priority
|
| Exposure Compensation |
-5 to +5 EV (1/3, 1/2, 1 EV Steps)
|
| Metering Range |
-2 to 20 EV
|
| White Balance |
2000 to 14,000K
Presets: Auto, Cloudy, Color Temperature, Custom, Flash, Fluorescent, Incandescent, Shade, Sunlight, Underwater
|
| Continuous Shooting |
Up to 30 fps at Maximum Resolution
|
| Interval Recording |
Yes
|
| Self-Timer |
2/12-Second Delay
|
Still Image Capture
| Aspect Ratio |
1:1, 3:2, 4:3, 16:9
|
| Image File Format |
JPEG, Raw
|
| Bit Depth |
12-Bit
|
Video Capture
| Internal Recording Modes |
H.264/MOV/MPEG-4 AVC
DCI 4K (4096 x 2160) at 24.00 fps [237 Mb/s]
H.264/MOV/MPEG-4 AVC
UHD 4K (3840 x 2160) at 24.00/25/29.97 fps [102 Mb/s]
H.264/MOV/MPEG-4 AVC
1920 x 1080 at 24.00/25/29.97 fps [18 to 202 Mb/s]
H.264/MOV/MPEG-4 AVC
1280 x 720 at 24.00/25/29.97/50/59.94 fps [102 Mb/s]
MOV
1920 x 1080
|
| External Recording Modes |
HDMI
4096 x 2160
3840 x 2160
1920 x 1080p
|
| Fast-/Slow-Motion Support |
Yes
|
| Recording Limit |
No
|
| IP Streaming |
No
|
| Built-In Microphone |
Stereo
|
Interface
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC (UHS-II)
|
| Video I/O |
1x Micro-HDMI Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
|
| Power I/O |
1x Micro-USB Input/Output
|
| Other I/O |
1x 2.5 mm Sub-Mini Data Input
|
| Wireless |
Wi-Fi (802.11b/g)
Bluetooth 4.2
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: OM Image Share
Functionality: Access Stored Files, Remote Control, View Live Feed
|
| Global Positioning (GPS, GLONASS, etc.) |
GPS
*Via Connected Smartphone
|
Monitor
| Display Size |
3"
|
| Resolution |
1,040,000 Dot
|
| Display Type |
Articulating Touchscreen LCD
|
Viewfinder
| Type |
Electronic (OLED)
|
| Resolution |
2,360,000 Dot
|
| Eye Point |
27 mm
|
| Coverage |
100%
|
| Diopter Adjustment |
-4 to +2
|
Focus
| Focus Type |
Auto and Manual Focus
|
| Focus Mode |
Continuous-Servo AF, Manual Focus, Single-Servo AF
|
| Autofocus Points |
Contrast Detection, Phase Detection: 121 (121 Cross-Type)
|
Flash
| Built-In Flash/Light |
No
|
| Flash Modes |
Fill Flash, Manual, Off, Red-Eye Reduction, Second-Curtain Sync, Slow Sync, Slow Sync/Red-Eye Reduction
|
| Maximum Sync Speed |
1/250 Second
|
| Flash Compensation |
-3 to +3 EV (1/3, 1 EV Steps)
|
| Dedicated Flash System |
TTL
|
| External Flash Connection |
Shoe Mount
|
General
| Battery |
1x BLS-50 Rechargeable (Included)
• Approx. 310 Shots
|
| Shoe Mount |
1x Hot Shoe
|
| Tripod Mounting Thread |
1x 1/4"-20 Female (Bottom)
|
| Operating Conditions |
14 to 104°F / -10 to 40°C at 30 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
|
| Dimensions (W x H x D) |
4.9 x 3.4 x 2" / 125.3 x 85.2 x 49.7 mm
|
| Weight |
12.9 oz / 366 g (Body Only)
14.6 oz / 414 g (With Battery)
|

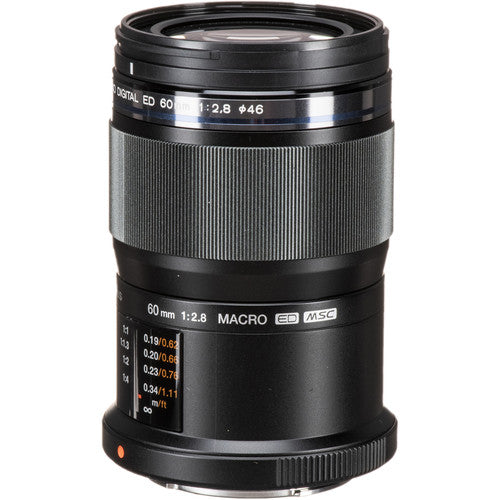

Olympus M.Zuiko Digital ED 60mm f/2.8 Macro Specs
| Focal Length |
60mm (35mm Equivalent: 120mm)
|
| Maximum Aperture |
f/2.8
|
| Minimum Aperture |
f/22
|
| Lens Mount |
Micro Four Thirds
|
| Lens Format Coverage |
Micro Four Thirds
|
| Angle of View |
20°
|
| Minimum Focus Distance |
7.48" / 19 cm
|
| Maximum Magnification |
1x
|
| Macro Reproduction Ratio |
1:1
|
| Optical Design |
13 Elements in 10 Groups
|
| Diaphragm Blades |
7, Rounded
|
| Focus Type |
Autofocus
|
| Image Stabilization |
No
|
| Filter Size |
46 mm (Front)
|
| Dimensions (ø x L) |
2.2 x 3.23" / 55.88 x 82.04 mm
|
| Length at Maximum Extension |
3.21" / 81.5 mm
|
| Weight |
6.53 oz / 185 g
|
